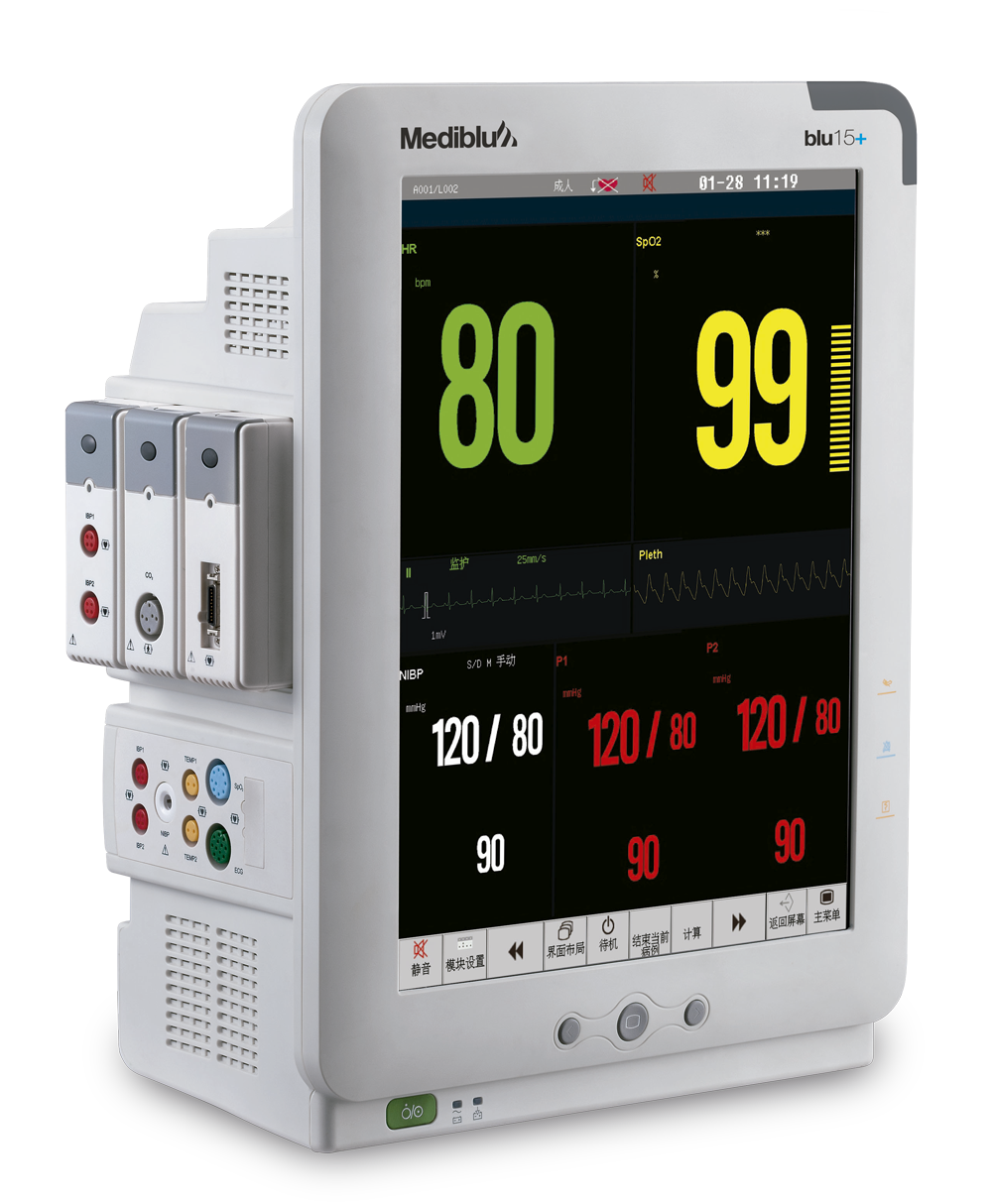

BLU15+

Multi-Parameter
Patient Monitor

Advanced ergonomic
design, portable,
compact & lightweight

Easy to use Multi-Parameter Patient Monitor, dedicated to In-hospital applications including emergency room pre and post-operative care, ICU, Operating room/theatre, ambulatory surgery, intermediate care/step down units, labour & delivery, and hospital based special procedure areas.

Features

» 15” Touch Colour LCD Screen.
» Multi-channel waveform display.
» Portable operation, multi-pronged.
» Full-screen touch, fingertip operation.
» Fast button backlit design for easy night operation.
» Ergonomic knob operation, classic and flexible.
» Plugin & use, powerful 3 module slots, easy to upgrade.
» Flexible combination, resource sharing.
» Global gold standard Masimo SpO2, ensures low perfusion measurement.
» Sun tech NIBP blood pressure, accurate blood pressure measurement.

Anesthesia Monitoring

The latest respiratory gas and brain activity monitoring technology for the most reliable performance during surgeries.

Respiratory Monitoring

Industry-leading CO2 & RM monitoring technology provides the most flexible and accurate solutions for both the intubated and non-intubated patients.

Cardiac Monitoring

Mediblu’s ECG algorithm, together with ICG technology allows for flexible and reliable measurements on even the extreme cardiac cases.

Emergency Cases

The modular design and the expanded parameter configurations extend possibilities in ICU/ER monitoring on a case-to-case basis.

Performance and Technical Specifications

General
Size: 335mm366mm172mm Weight ≤ 6kg Display 15” Color TFT – Resolution 1024×768 pixels Intelligent audio, three level, and Visual, Red Led, comprehensive alarm

Environment
Working temperature: 0-+40°C Storage temperature: -20-+50 °C Safety IEC60601 Approved

Power Requirement
Power Voltage AC 100-240V 50/60Hz; DC 12V (Optional) Power Rate 80VA *Operating time under normal use ≥ 3 Hours Charge time 6 Hours

System output
Ethernet Network standard RJ45 socket; Defibrillation Out. BNC connector USB 2 sockets; Video Output 1VGA (Option); Nurse call 1 Rj11 connector

Data Storage & Reviewing
Trend: Land trend: 168h,min.resolution is 1min (store when power goes off) NIBP measurement reviewing: 1000 groups ARR event: 128 groups of ARR event and the associated waveform. Alarm events:128 groups of parameter alarm events and associated parameter waveform at the alarm moment *Full Disclosure waveform: 96 hours for 3 waveforms{with 4G SD card)

ECG
Mode: 3/5/12-leads Lead selection: I, II, III, aVR, aVL, aVF, V1-V6 (option) Gain selection: AUTO, 0.25x, 0.50x, 1.0x, 2.0x, 4.0x Sweep speed: 6,25mm/s,12,5mm/s,25mm/s,50mm/s Heart Rate:15-300 bpm –HR accuracy: ± 1 % ST segment deviation analysis: -0.8-+0.8mV *ST accuracy: ±0.02mv

NIBP (Non-invasive blood pressure)
Method: Automatic Oscillometry Displayed parameters: Systolic, Diastolic and mean arterial pressure Measurement type : adult, paediatric, neonatal Operation Modes; Manual, Auto and Continuous Measurement range: Systolic 4.0 – 36.0 kPa Diastolic 1.3 – 33.0 kPa Mean 2.6 – 35.0 kPa Accuracy : ± 0.4 kPa or 5 % Resolution: 0.1 kPa Protection: Hardware and SW overpressure protection

Temperature (Rectal & Surface)
Method: Thermal resistance Number of channels: 6 Displayed parameters: T1, T2 and △T Measurement range: 0,0°C to 50.0°C, Resolution: ±0.1 °C

IBP (Invasive blood pressure)
Method: Directly invasive pressure measurement Number of channels: 6 Pressure readings: Systolic pressure, diastolic pressure and mean pressure Pressure labels: ART, PA, LAP, RAP, RAP, CVP, ICP, P1/P2 Measurement range:(-10 to 350) mmHg Dynamic Accuracy: ± 4mmHg or 4%, whichever is greater

Cardiac Output
Method: Thermal dilution Measurement parameters: C.O., TB, Tl, C.I. Measurement Range: C.O. 0.1– 20 L/min TB: 23.0 – 43.0’C,Tl: -1 0 – 27.0”C, Resolution:C.O.: 0.1 L/min *TB Alarm range: 23.0-43.o·c , high/low limit can be adjusted continuously

RESP
Method: Thoracic impedance Lead Selected from: 1 (RA-LA) or Il (RA-LL); Default: 1 Gain: x0.25, x1 x2 x4,-Bandwidth: 0.25 Hz ta 2.0Hz (-3dB) Sweep speed: 6.25mm/s, 12.5mm/s, 25mm/s Measurement Range: 0-150 rpm,- Resolution : 1 rpm Delay of Apnea Alarm: 10s, 15s, 25s, 30s, 35s, 40s, 45s, 50s, 55s, 60s

Standard configuration
15” Touch screen display, 3 Standard module slot, 3/5 Lead ECG, HR, RESP, NIBP, SpO2, PR,2-TEMP,1 RJ45 Ethernet socket, , 1 VGA port, 2 USB1 .1 Lithium rechargeable battery.

Thermal Printer (Option)

Thermal Printer (Option)
Thermal dot array with 3 tracks Paper width: 50 mm with Paper Speed of 12.5/25/50 (mm/sec)

SpO2, Masimo SpO2 (Optional)

SpO2, Masimo SpO2 (Optional)
Display type: waveform data Measurement range (0 to 100) % Measurement precision: (70 to 100) %: ±2 % SpO2 resolution 1%

ETCO2 Sidestream, Mainstream, ETCO2 Microstream

ETCO2 Sidestream, Mainstream, ETCO2 Microstream
Measure method: infrared spectrum Warm up lime: Capnogram displayed in less than 15 seconds Measurement Range: 0 – 19.7%(0-150mmHg) Resolution: 1 mmHg, Unit: %, mmHg, kPa *C02 Accuracy: 0–40mmHg,±2%,101-150 mmHg, ± 10%

Anesthesia gas analysis

Anesthesia gas analysis
Measure method: lnfrared spectrum Measure mode: Mainstream or Sidestream Resolution: 1 %- Unit:%. Calibration: Auto Room air calibration when changing airway adapter (<5 sec) Warm-up time: <10 s, full accuracy within 1 min awRR measurement range: 0-150 rpm, Accuracy : ± 1 rpm

Optional Modules

Optional Modules
*Sidestream C02, Microstream CO2, Mainstream C02, AG , CO IBP, 2°Temp, Masimo Sp02 , Nellcor SpO2.

Optional Accessories

Optional Accesories
Printing: 3 channel thermal recorder, Mounting Rolling stand , wall mount, Battery: 11 .1V/4.0AH Rechargeable Lithium Battery. Other options: External Display, Wireless Lan. Extensive Memory card, Analog Output (ECG or IBP)

General
Size: 335mm366mm172mm Weight ≤ 6kg Display 15” Color TFT – Resolution 1024×768 pixels Intelligent audio, three level, and Visual, Red Led, comprehensive alarm

Environment
Working temperature: 0-+40°C Storage temperature: -20-+50 °C Safety IEC60601 Approved

Power Requirement
Power Voltage AC 100-240V 50/60Hz; DC 12V (Optional) Power Rate 80VA *Operating time under normal use ≥ 3 Hours Charge time 6 Hours

System output
Ethernet Network standard RJ45 socket; Defibrillation Out. BNC connector USB 2 sockets; Video Output 1VGA (Option); Nurse call 1 Rj11 connector

Data Storage & Reviewing
Trend: Land trend: 168h,min.resolution is 1min (store when power goes off) NIBP measurement reviewing: 1000 groups ARR event: 128 groups of ARR event and the associated waveform. Alarm events:128 groups of parameter alarm events and associated parameter waveform at the alarm moment *Full Disclosure waveform: 96 hours for 3 waveforms{with 4G SD card)

ECG
Mode: 3/5/12-leads Lead selection: I, II, III, aVR, aVL, aVF, V1-V6 (option) Gain selection: AUTO, 0.25x, 0.50x, 1.0x, 2.0x, 4.0x Sweep speed: 6,25mm/s,12,5mm/s,25mm/s,50mm/s Heart Rate:15-300 bpm –HR accuracy: ± 1 % ST segment deviation analysis: -0.8-+0.8mV *ST accuracy: ±0.02mv

NIBP (Non-invasive blood pressure)
Method: Automatic Oscillometry Displayed parameters: Systolic, Diastolic and mean arterial pressure Measurement type : adult, paediatric, neonatal Operation Modes; Manual, Auto and Continuous Measurement range: Systolic 4.0 – 36.0 kPa Diastolic 1.3 – 33.0 kPa Mean 2.6 – 35.0 kPa Accuracy : ± 0.4 kPa or 5 % Resolution: 0.1 kPa Protection: Hardware and SW overpressure protection

Temperature (Rectal & Surface)
Method: Thermal resistance Number of channels: 6 Displayed parameters: T1, T2 and △T Measurement range: 0,0°C to 50.0°C, Resolution: ±0.1 °C

IBP (Invasive blood pressure)
Method: Directly invasive pressure measurement Number of channels: 6 Pressure readings: Systolic pressure, diastolic pressure and mean pressure Pressure labels: ART, PA, LAP, RAP, RAP, CVP, ICP, P1/P2 Measurement range:(-10 to 350) mmHg Dynamic Accuracy: ± 4mmHg or 4%, whichever is greater

Cardiac Output
Method: Thermal dilution Measurement parameters: C.O., TB, Tl, C.I. Measurement Range: C.O. 0.1– 20 L/min TB: 23.0 – 43.0’C,Tl: -1 0 – 27.0”C, Resolution:C.O.: 0.1 L/min *TB Alarm range: 23.0-43.o·c , high/low limit can be adjusted continuously

RESP
Method: Thoracic impedance Lead Selected from: 1 (RA-LA) or Il (RA-LL); Default: 1 Gain: x0.25, x1 x2 x4,-Bandwidth: 0.25 Hz ta 2.0Hz (-3dB) Sweep speed: 6.25mm/s, 12.5mm/s, 25mm/s Measurement Range: 0-150 rpm,- Resolution : 1 rpm Delay of Apnea Alarm: 10s, 15s, 25s, 30s, 35s, 40s, 45s, 50s, 55s, 60s

Standard configuration
15” Touch screen display, 3 Standard module slot, 3/5 Lead ECG, HR, RESP, NIBP, SpO2, PR,2-TEMP,1 RJ45 Ethernet socket, , 1 VGA port, 2 USB1 .1 Lithium rechargeable battery.
