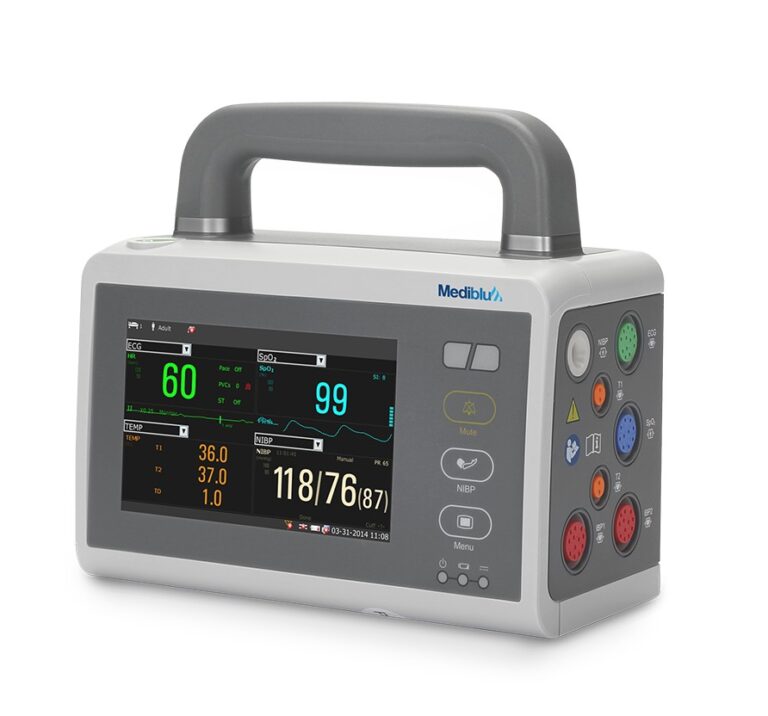

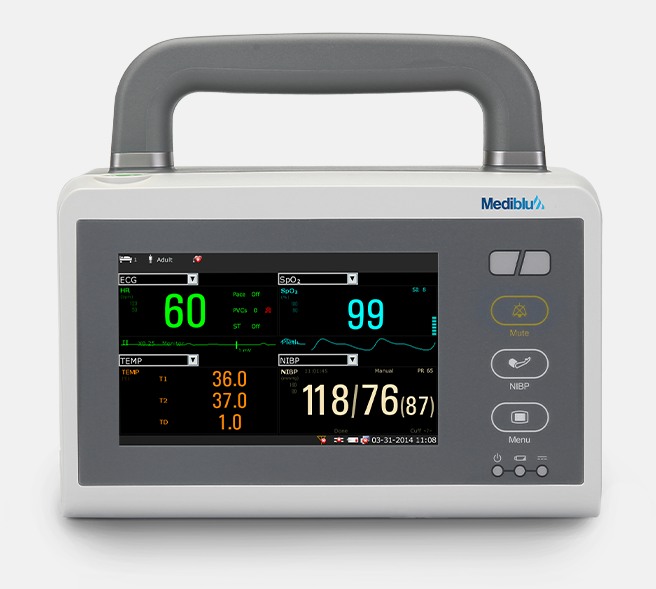

MM5

Vital Signs Monitor

Elaborate monitoring anytime and anywhere

The new MM5 vital signs patient monitor provides accurate clinical-grade spot-check measurements of blood pressure, SPO2, temperature and heart rate suitable for any first aid room, hospital, clinic or ambulance.

Features

» Portable Design
» Shock Resistance
» No-fan Design
» Full Touch Operation
» Waterproof Dustproof
» Rechargeable Li-ion Battery

Technical Specifications

Measurement Range:	Systolic pressure (SYS): (0~40)kPa, or (0~300)mmHg Diastolic pressure (DIA): (1.3~26.7) kPa, or(10~200) mmHg Mean arterial pressure (MAP): (2.7~29.3) kPa, or (20~220) mmHg
Resolution:	1mmHg
Accuracy:	Static: ± 3mmHg, Clinical: ± 5mmHg, Standard deviation: ≤ 8mmHg
Alarm tolerance:	± 5%

Display type	Waveform, Data
Measurement range	0~100%
Accuracy:	1%
Pulse rate range	25~250bpm
Accuracy:	±1bpm
SpO2 resolution	1bpm

Standard Configuration	NIBP+SpO2 +TEMP+ HR/PR +Battery.
Optional Configuration	ETCO2, Printer, Nellcor Spo2, touch screen, moving cart, wall mount and high energy battery

Measurement Method	Extracorporeal ear temperature gun
Measurement range	32.0 – 42.9 ℃ Display T
Resolution	0.1 ℃
Display	T1
Unit	℃/℉ selection

Measurement type	Main/side stream
Measurement range	0%~19.7%; 0~150mmHg; 0~20kpa
Accuracy	0~40mmHg ±2mmHg, 41~70mmHg ±5% 71~100mmHg ±8% 101~150mmHg ±10

	1 set of NIBP extend cable, 1 set of NIBP adult cuff, 1 set of extracorporeal ear TEMP gun, 1 set of integrated adult SpO2 sensor, 1 set of power supply cable

Measurement Range:	Systolic pressure (SYS): (0~40)kPa, or (0~300)mmHg Diastolic pressure (DIA): (1.3~26.7) kPa, or(10~200) mmHg Mean arterial pressure (MAP): (2.7~29.3) kPa, or (20~220) mmHg
Resolution:	1mmHg
Accuracy:	Static: ± 3mmHg, Clinical: ± 5mmHg, Standard deviation: ≤ 8mmHg
Alarm tolerance:	± 5%

Display type	Waveform, Data
Measurement range	0~100%
Accuracy:	1%
Pulse rate range	25~250bpm
Accuracy:	±1bpm
SpO2 resolution	1bpm

Standard Configuration	NIBP+SpO2 +TEMP+ HR/PR +Battery.
Optional Configuration	ETCO2, Printer, Nellcor Spo2, touch screen, moving cart, wall mount and high energy battery

Measurement Method	Extracorporeal ear temperature gun
Measurement range	32.0 – 42.9 ℃ Display T
Resolution	0.1 ℃
Display	T1
Unit	℃/℉ selection

Measurement type	Main/side stream
Measurement range	0%~19.7%; 0~150mmHg; 0~20kpa
Accuracy	0~40mmHg ±2mmHg, 41~70mmHg ±5% 71~100mmHg ±8% 101~150mmHg ±10

Working voltage	100~240VAC, 50/60HzM
Power rate	80VA

	1 set of NIBP extend cable, 1 set of NIBP adult cuff, 1 set of extracorporeal ear TEMP gun, 1 set of integrated adult SpO2 sensor, 1 set of power supply cable
